Material testing machines up to 2.5 kN

The universal testing machine inspekt solo is a very lightweight testing machine, which has been designed for simple standard tests or customer-specific, more challenging tests. It stands out due to its convincing cost/performance ratio and the user-friendly manner of operation. In connection with the testing software LabMaster, inspekt solo universal testing machines can determine material characteristics of wires, foam plastics, elastomers, plastics, paper, cardboard, textiles, foodstuffs, and components in a quick and easy way.

The Inspekt solo for test loads up to 2.5kN is a further development of the successful inspekt mini series for standard-compliant material and component testing in the low load range. In order to be able to better represent the wide range of requirements for this machine series, new technological possibilities have been exploited. Instead of DC motors, a new drive concept with stepper motors was developed - brushless, low-wear and noise-optimised.

Fields of application

The universal testing machine inspekt solo is a particularly light materials testing machine for determining the material characteristics of:

·         Wire,

·         Foams,

·         Elastomers,

·         Plastics,

·         Paper,

·         Cardboard,

·         Dry goods,

·         Groceries,

·         Structural components

This user-friendly materials testing machine enables simple standard tests as well as customer-specific tests at a convincing price/performance ratio. The test software LabMasterenables a faster and reliable determination of the results.

Depending on the application, the inspekt solo series is available in three different test chamber heights. The "S" version is ideal for cyclic compression tests on dental implants, while the "L" version can be used for peel tests on adhesion surfaces or tensile tests on elastomers.

Load frame

The universal testing machine inspekt solo is offered in a load frame design of 2.5 kN. The crosshead is driven by a brushless motor and a backlash-free preloaded recirculating ball screw.

Load measurement

The inspekt solo ensures reliable force measurement by means of a strain gauge force transducer. This is equipped with sensor plugs which automatically recognize the setting and calibration parameters. In addition, the materials testing machine has special measuring electronics that guarantee class 1 measuring accuracy in accordance with DIN EN ISO 7500-1 in the range from 0.2 to 100% of the nominal load. Alternatively, Hegewald & Peschke MPT GmbH offers an optional measuring accuracy of 0.5 for the universal testing machine inspekt solo.

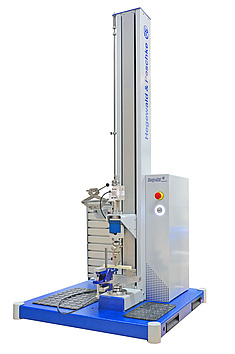

Universal testing machine inspekt solo 2.5 kN in three different versions

Universal testing machine inspekt solo 2.5 kN as spring testing machine

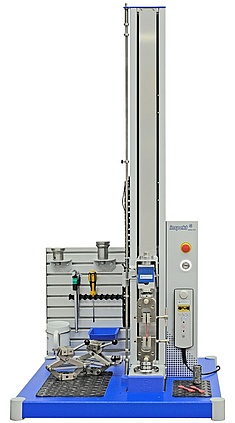

Universal testing machine inspekt solo 2.5 kN with tool rest

Bending test with universal testing machine inspekt solo
